High Torque Stepper Motor | Micro Stepper Motor

  • High Torque Stepper Motor | Micro Stepper Motor
  • High Torque Stepper Motor | Micro Stepper Motor
  • High Torque Stepper Motor | Micro Stepper Motor
  • High Torque Stepper Motor | Micro Stepper Motor

High Torque Stepper Motor | Micro Stepper Motor

Basic Info

Model No.: 35BYJ46 12V

Product Description

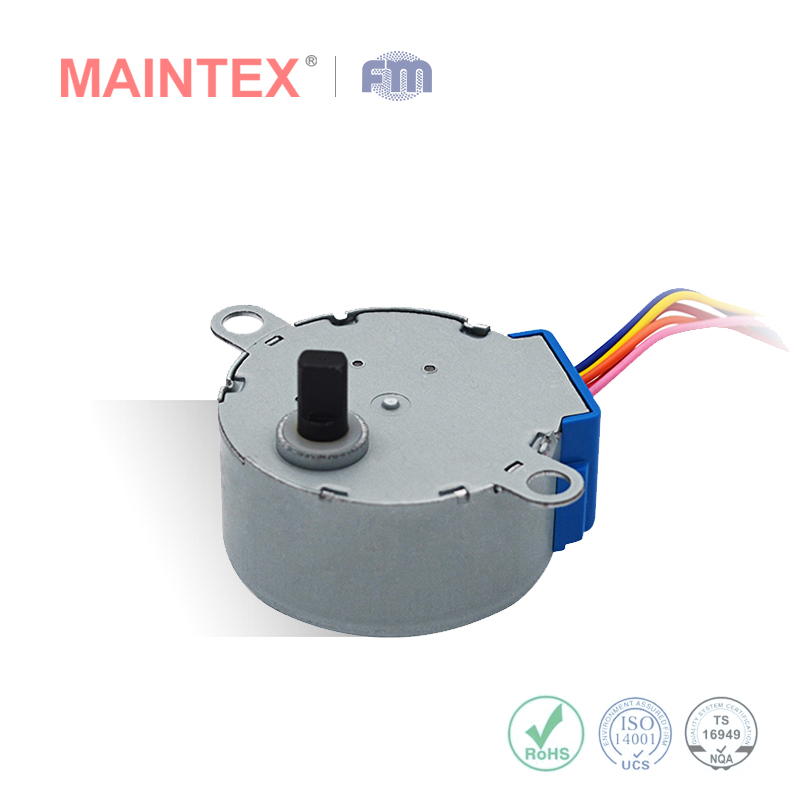

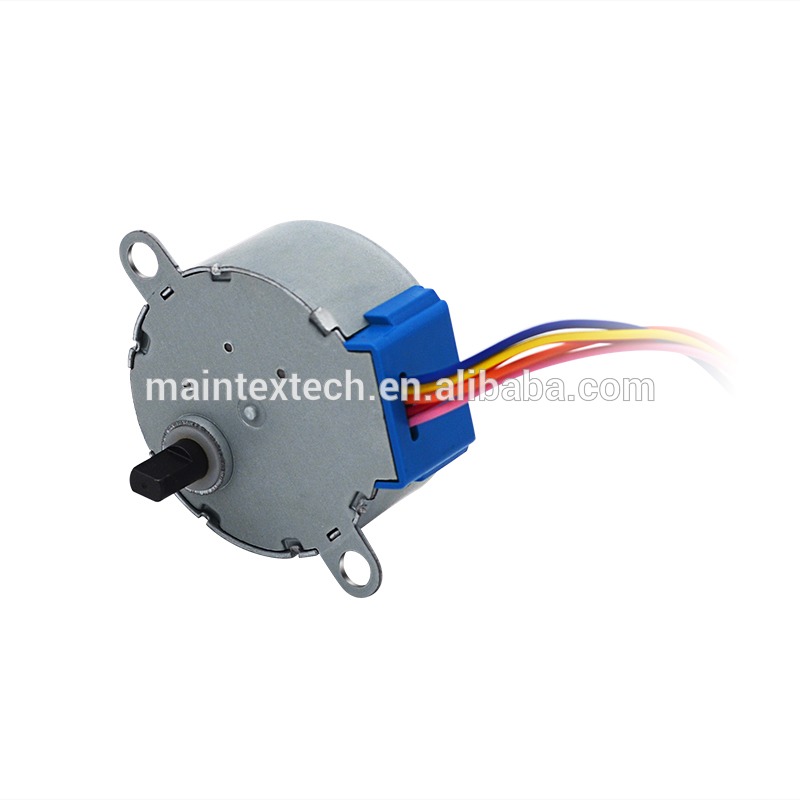

35BYJ46 12V High Torque Stepper Motor, Micro Stepper Motor, Gear Reducer Stepper Motor is a type of Micro Stepper Motor and also belongs to Stepper Motor.
Microstepping is a method of controlling stepper motors, typically used to achieve higher resolution or smoother motion at low speeds.
Micro Stepper Motor divides each full step into smaller steps to help smooth out the motor’s rotation, especially at slow speeds.
Microstepping is achieved by using pulse-width modulated (PWM) voltage to control current to the motor windings. The driver sends two voltage sine waves, 90 degrees out of phase, to the motor windings. While current increases in one winding, it decreases in the other winding. This gradual transfer of current results in smoother motion and more consistent torque production than full- or half-step control.

Parameter of 35BYJ46 12V High Torque Stepper Motor, Micro Stepper Motor, Gear Reducer Stepper Motor

Driving Voltage

12±10% V

Phase

4 Phase

Lead Wire

5

Excitation

1-2

Reduction

1/42.5

Step Angle

7.5°

Resistance

15±10% Ω

Pull In Frequency

500 Hz

Pull Out Frequency

700 Hz

Pull In Torque

260 mN.m

Detent Torque

260 mN.m

Insulation Resistance

50 MΩ

Dielectric Strength

600 VAC/1mA/1s

Friction Torque

2.5-3.0 Kgf.cm

Insulation Grade

B

Temperature Rise

60 K

Weight

69 g

Noise

40 dBmax

35BYJ46 12V High Torque Stepper Motor, Micro Stepper Motor, Gear Reducer Stepper Motor35BYJ46 12V High Torque Stepper Motor, Micro Stepper Motor, Gear Reducer Stepper Motor



Main Performance of 35BYJ46 12V High Torque Stepper Motor, Micro Stepper Motor, Gear Reducer Stepper Motor

Diameter: 35 mm
Step Angle: 7.5°

Voltage: 12V, customized.

Phase: 4

Excitation: 1-2


All parameter can be customized according to your actural demand, for detailed information please contact me or leave a message.


Drawing of 35BYJ46 12V High Torque Stepper Motor, Micro Stepper Motor, Gear Reducer Stepper Motor

35BYJ46 12V High Torque Stepper Motor, Micro Stepper Motor, Gear Reducer Stepper Motor


Our Company Maintex&FM

Shenzhen Maintex Intelligent Control Co., Ltd.



Shenzhen Maintex Intelligent Control Co., Ltd. owns existing factory more than 26 thousand square meters, net assets over billions of dollars, nearly a thousand employees, and over 30 production lines with the annual output of more than 35 million units.The product of Maintex covering over twenty countries and regions around the world, and has been widely praised by customers.

MAINTEX's main products are precision permanent magnet stepper Motor, permanent magnet DC motor, brushless motor, precision gear motor, rotary transformer and other micro motor products, as well as the treadmill motor Control System, train model, electric pump and electromechanical integration products. These products are widely used in security systems, financial systems, industrial Control Systems, vehicle systems, retail services and office automation and other fields. At the same time, the company also provide personalized application solutions of micro electromechanical products.

MAINTEX strives to realise products diversification and differentiation, and to build the leading enterprise in the motor industry.The brand MAINTEX has become a high recognition brand in presicion and intelligent control industry with a short period of time.
